Laser cutting makes hot-formed steel (PHS) processing more efficient

2024-09-14

1 Advantages of laser technology

Since its development, laser technology has been widely used in the industrial field. In brief, there are several main advantages of laser technology. First, laser cutting is suitable for processing a variety of materials, including high-strength steel and aluminum, enabling automakers to choose lighter and stronger materials to meet the needs of safety and lightweight; second, the laser spot diameter is usually around 50μm, and the theoretical accuracy can be ±0.05mm. The energy after focusing is very high, and the processing speed is fast and efficient. When processing PHS parts, the actual processing speed can reach 300mm/s.


2 Balance between efficiency and quality

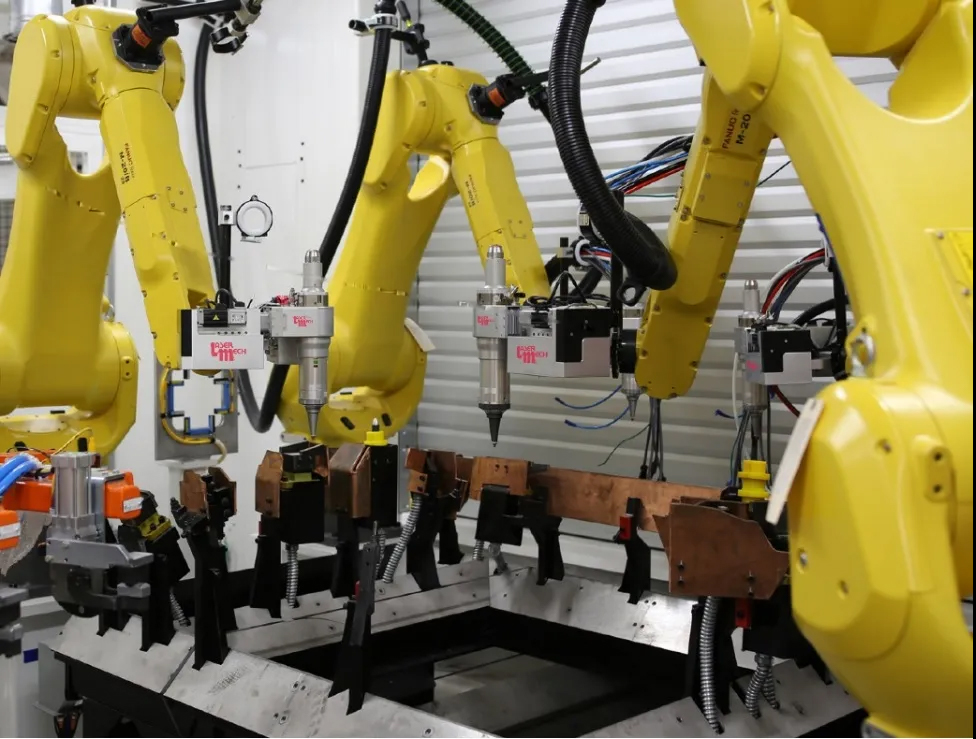

Optimizing the laser cutting path and motion performance is crucial to improving production efficiency. It is also important to balance the relationship between laser cutting speed and cutting quality. Based on experience, Raymax Laser gives the following suggestions: First, for cutting path optimization, it currently mainly relies on robot path optimization. Robot path optimization, one way is manual teaching to form a path trajectory; another way is to perform path planning through offline programming.

The core of the two methods is how to avoid the interference zone during high-speed operation, which depends entirely on the technical strength of each robot company. Putting aside the interference zone factor, in the actual processing process, the speed of laser cutting can be as high as 300mm/s, which requires high motion performance of the laser head.

3 Cutting accuracy and efficiency

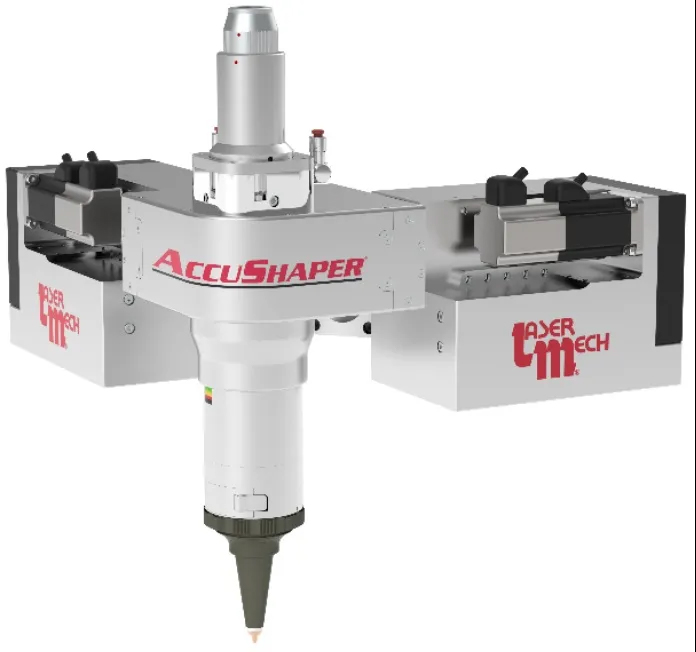

AccuShaper2.0 laser cutting head mainly improves cutting accuracy and efficiency from several aspects: patented inertia compensation system, coupled with high-precision XY motion mechanism, to achieve ±0.05mm trajectory processing accuracy; compact and lightweight with high-precision robots or other high-precision mechanical structures to achieve high-precision three-dimensional processing; integrated XYZ axis, while ensuring accuracy, the maximum movement speed can reach 250mm/s; high-response follow-up control system, can ensure high-speed follow-up response on the undulating surface within ±8.5mm, while ensuring quality, maximizing cutting efficiency.


Compared with a three-dimensional five-axis laser cutting machine, the advantages of enterprises using this laser cutting head are low cost, high flexibility, and easy operation. Compared with a 3D five-axis laser cutting machine, the cost of using a single AccuShaper2.0 laser cutting head with a robot is about 50%-60% of the cost of an imported 3D five-axis laser cutting machine, and the processing efficiency is also about 70%-80% of that of a 3D five-axis laser cutting machine.

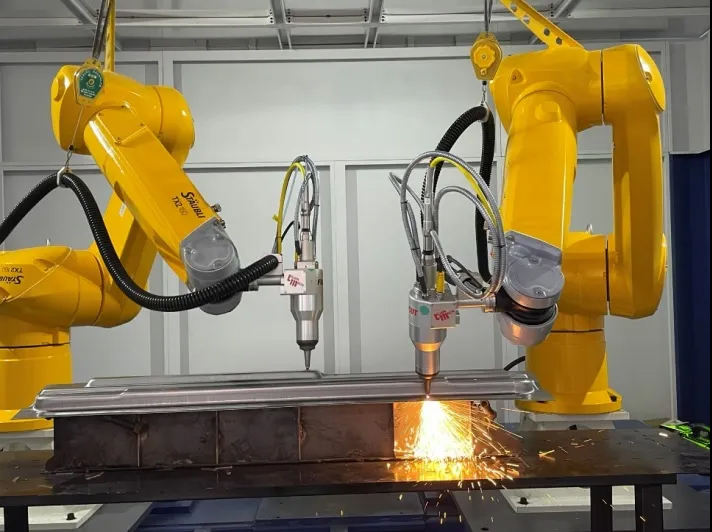

The AccuShaper2.0 laser cutting head performs simultaneous differential cutting, which ensures the flexibility and compatibility of the equipment on the one hand, and improves the processing efficiency on the other. At present, in the absence of interference zones, the efficiency of the two linkages can reach about 1.4-1.6 times that of a 3D five-axis laser cutting machine, effectively solving the problem of cost and efficiency.
